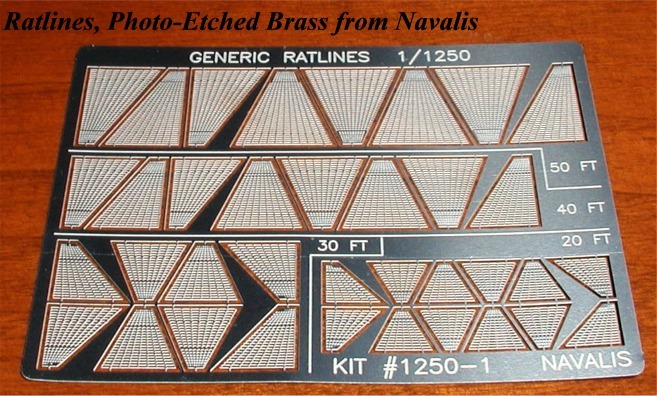

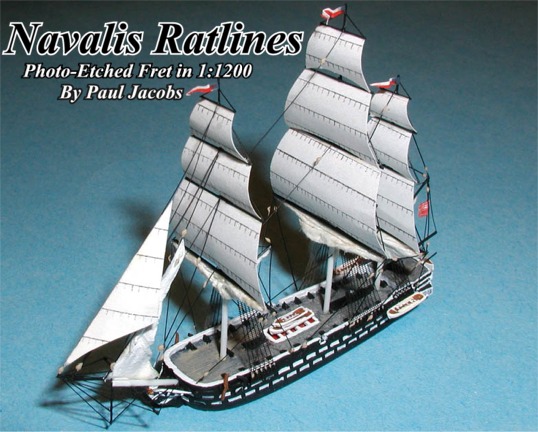

Navalis has issued several 1200/1250 scale photo-etched brass sets. These include radars for U.S. ships, and two generic ratline sets (#1250-1 Small, and #1250-2 Large). Illustrated here is the use of these ratlines in the construction of the Skytrex model NS 64 NORTH CAROLINA, which I built as her sister ship, the DELAWARE. NORTH CAROLINA and DELAWARE were two of a number of ships of the line built for the U.S. Navy in the early 1800's. Both ships had long and active careers.

Click to Enlarge

Since this is a fairly large vessel, I found it necessary to use primarily the large ratline set. The ratlines come in sizes and widths that are generally larger than what is needed and so they must be cut to size. This is not a problem, however as they are easily cut with scissors. After cutting them to the appropriate size, they were glued on with super-glue and painted black. The manufacturer recommends air-brushing them before installation, however, I installed them, then hand brushed them repeatedly with a thin coat of paint so as to avoid filling in the holes in the ratlines.

Click to Enlarge
Delaware-ratlines2-70.jpg (114170 bytes) rat3-55.jpg (129988 bytes) Delaware -ratlines1-70.jpg (110522 bytes)

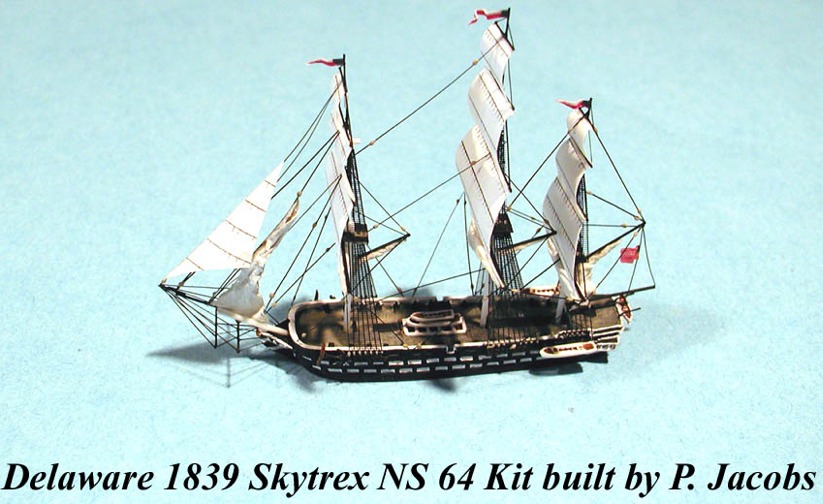

The end result is visible in the accompanying photographs. Several photos of the model under construction are included so that the reader can more easily view the ratlines. I think that these greatly enhance the finished product and highly recommend them to the modeler.

Lest one mistakenly assume that these are only useful for sailing ships, one should be aware that ratlines were often used on steamships and steel warships even into the early part of the 20th century. So the builder and collector of these ships may find them of great value as well.

C.ick to Enlarge

These sets are available direct from the manufacturer. The Navalis web site can be located by clicking onto the link found on the Home Page of this site.
