The original Essex and the earlier ships in the class were 872 feet in length, and were later to be called the Short-Hull Essex. As finished, the ships of the short-hull variant had a single quadruple 40mm mount on the forecastle underneath the front edge overhang of the flight deck. It was quickly discovered that this bow AA position was almost useless as its field of fire was extremely constricted because of the overhang of the flight deck. The solution was to lengthen the bow and cut back the forward edge of the flight deck. An additional sixteen feet was added to the design with a lengthened bow and a stern sponson for two quadruple Bofors mounts. Dramatically, the above water shape was completely changed. Gone was the rounded shape of the short-hull variant and in its place was a more dramatic and lengthier Clipper Bow cutwater upon which a squared off forecastle deck rested. By lengthening, widening and squaring off the forward tip of the bow, two quadruple Bofors could be fitted, rather than one and by lengthening the hull by 16 feet to 888-feet OA and reducing the forward edge of the flight deck by 11 feet, these mounts had a clear field of fire.

Click to Enlarge

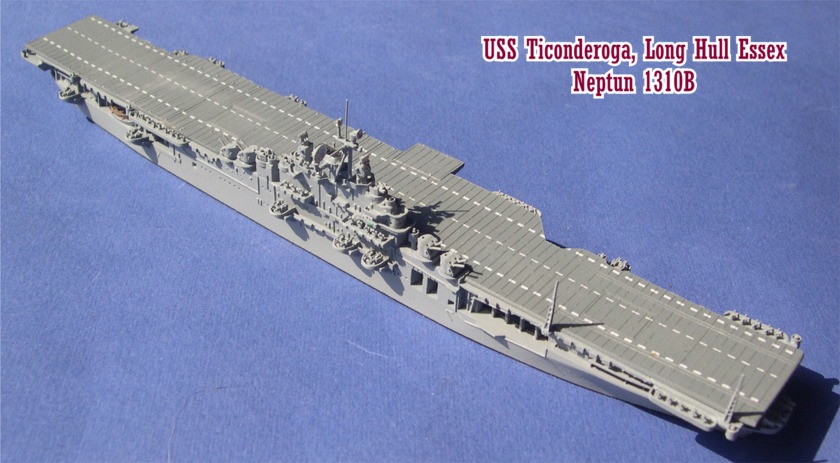

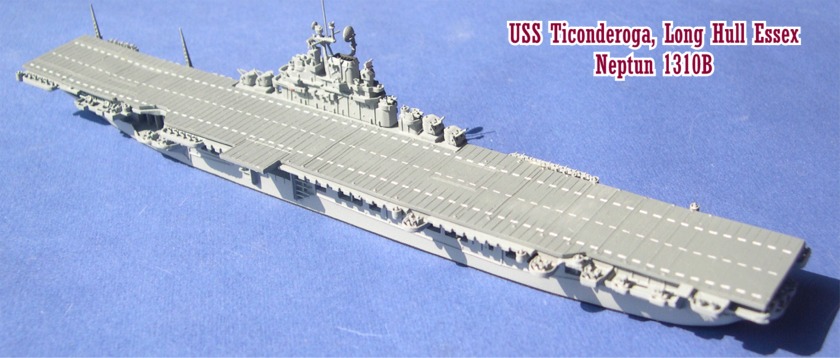

Ti1176.JPG (69701 bytes) Ti1180.JPG (90277 bytes) Ti1177.JPG (66039 bytes) Ti1181.JPG (113430 bytes)

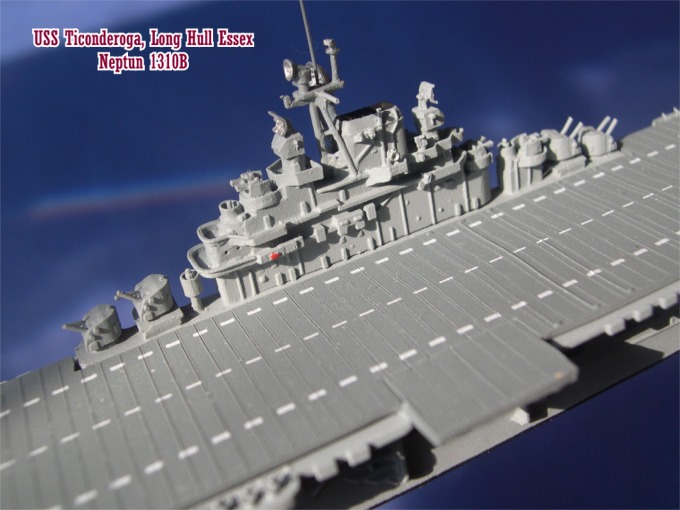

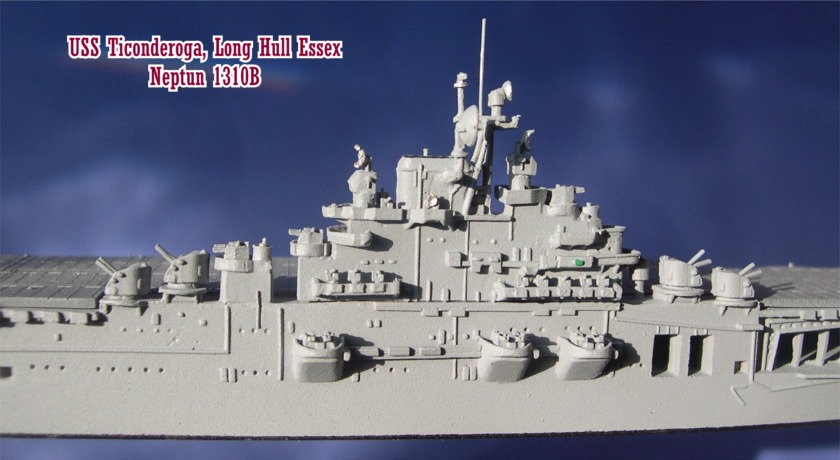

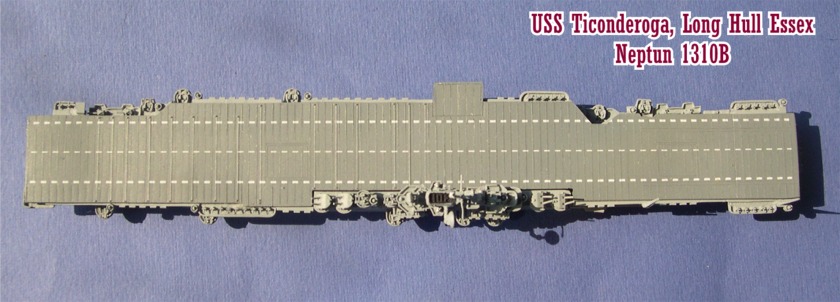

Ti1186.JPG (80396 bytes) Ti1187.JPG (80341 bytes) Ti1183.JPG (96495 bytes) Ti1182.JPG (81444 bytes)

The modified design was called the Long-Hull Essex. As constructed, the bulk of the Essex Class were in the long hull category. The 888-feet long-hull variant was found on Ticonderoga CV-14, Randolph CV-15, Hancock CV-19, Boxer CV-21, Antietam CV-36, Shangri-La CV-38, Lake Champlain CV-39 and the seven of the class completed after the war, Leyte CV-32, Kearsarge CV-33, Oriskany CV-34, Princeton CV-37, Tarawa CV-40, Valley Forge CV-45 and Philippine Sea CV-47.

Click to Enlarge

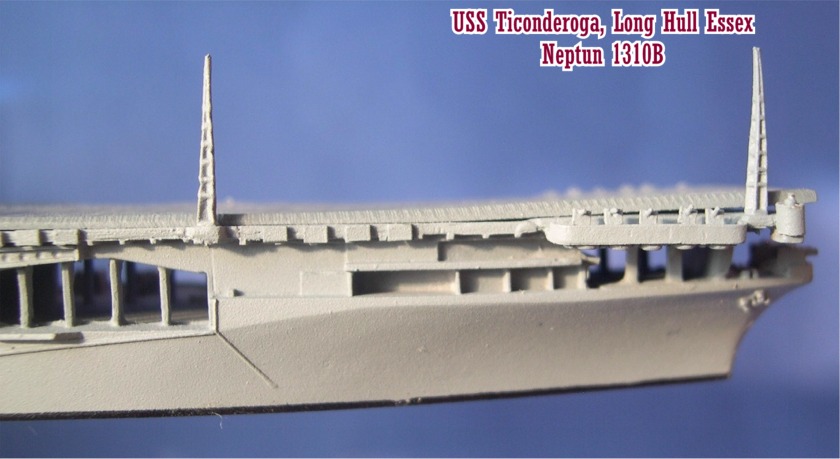

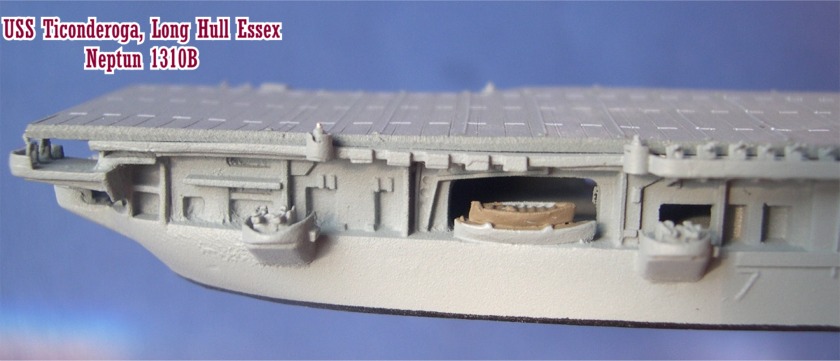

Ti1195.JPG (67318 bytes) Ti1196.JPG (80022 bytes) Ti1197.JPG (97743 bytes) Ti1198.JPG (81658 bytes)

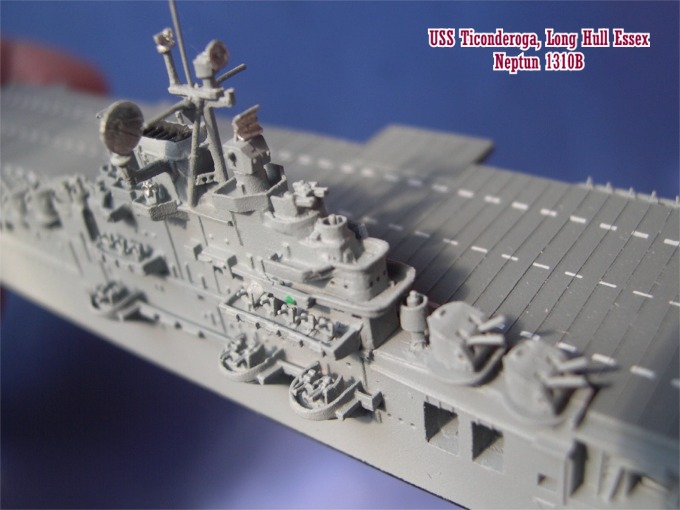

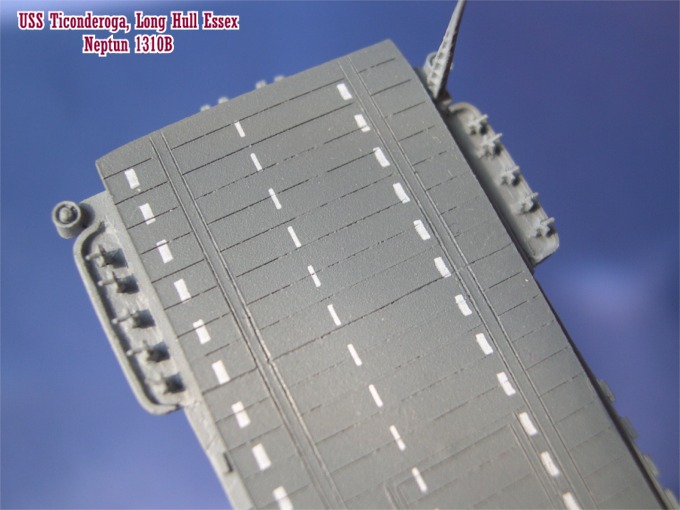

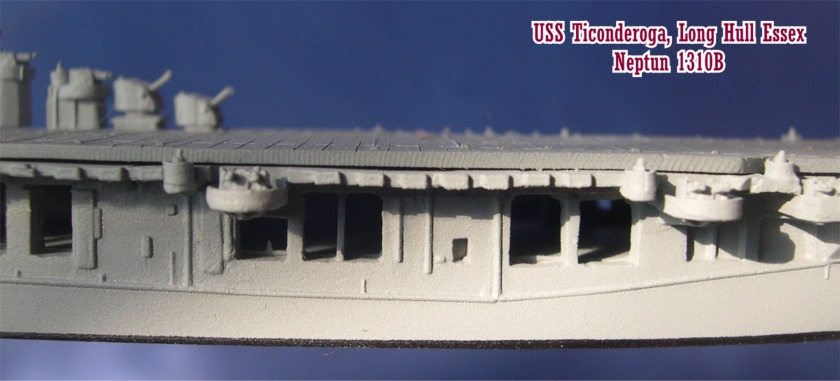

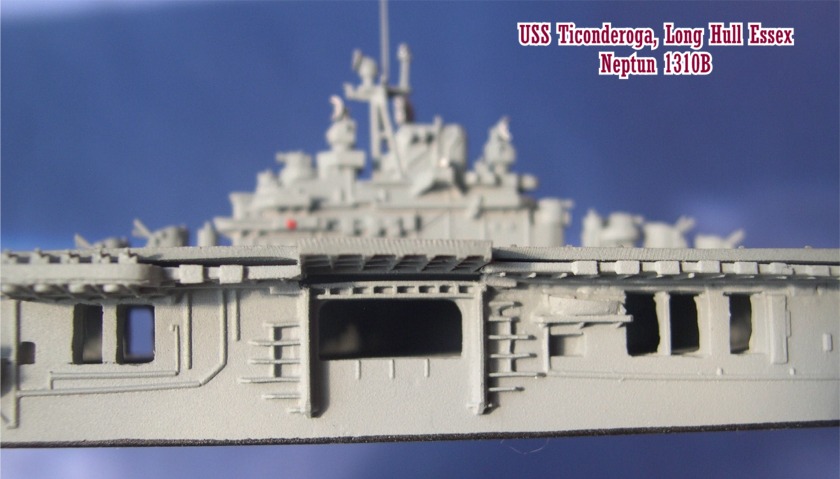

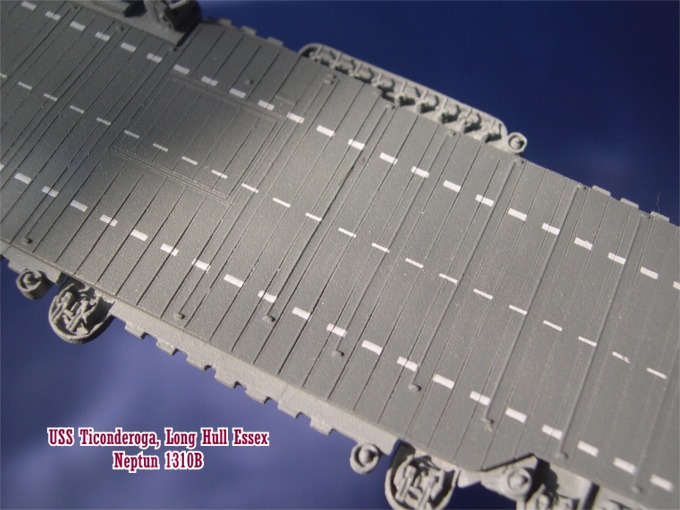

Neptun produces an excellent model of USS Ticonderoga CV-14. The model is N1310b.
